5.5KW 220V Solar Controller Inverter Solar Pumping Inverter 3 Phase MPPT Function

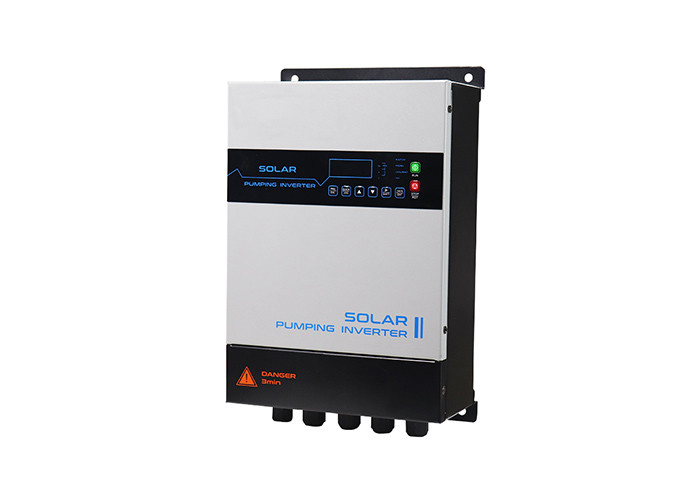

JET-SR PU Series Solar Pump Inverter
JET-SR PU Series Solar Pump Inverter, it covers a wide power range from 0.4KW to 80KW, with a wide range of pumps for submersible, surface applications. It is widely used in irrigation of land, domestic water supply, fish farming, livestock, swimming pool, fountain, drip irrigation & sprinkler, industrial application, swimming pool…
Features
1, MPPT technology, even it is cloudy, pump can maintain low speed running.
2, AC input compensation function, such as solar power 80%, inverter will use 20% from AC input to supply 100% to water pump, solar power is 100%, inverter will not use AC input, save AC cost.
3, No water sensor function, water tank full sensor function.
4, Widely PV working voltage 150VDC to 400VDC.
5, Dust-proof cooling fan, noise reduction.
6, Support independent or complementary use of PV and utility power.
7, External water level signal control.
8, Pure sine wave
9, Good heat dissipation system can prolong service life and improve machine stability.
10, Smart battery charger design for optimized battery performance.
Applications
Specification
| Model | L11 | L13 | L33 | H33 |
| AC Input Voltage | 187-264V (1PH) | 187-264V (3PH) | 323-484V (3PH) |
| Max. DC Input Voltage | 440V | 440V | 440V | 800V |
| Startup Voltage | 200V | 200V | 200V | 300V |
| Lowest Working Voltage | 150V | 150V | 150V | 250V |
| Recommended DC Input Voltage Range | 200-400V | 200-400V | 200-400V | 300-750 |
| Recommended MPPT Voltage | 330V | 330V | 330V | 550V |
| Rated Output Voltage | 220V (1PH) | 220V (3PH) | 220V (3PH) | 380V (3PH) |
| Output Frequency Range | 0-400Hz |
| MPPT Efficiency | 99% |
| Environment Temperature | -10~+50℃, if above 40℃, derate 2% for every additional 1℃ |
| Altitude | Below 1000m, if above 1000m, derate 1% for every additional 100m. |
| Cooling Manner | Fan Cooling |
| Series | Model | Rated Output Power (KW) | Rated Input Current (A) | Rated Output Current (A) |
| L11 (0.4-2.2KW) | PU 0K4-L11 | 0.4 | 6.5 | 4.2 |
| PU 0K7-L11 | 0.75 | 9.3 | 7.2 |
| PU 1K5-L11 | 1.5 | 15.7 | 10.2 |
| PU 2K2-L11 | 2.2 | 24 | 14 |
| L13 (0.4-2.2KW) | PU 0K4-L13 | 0.4 | 6.5 | 2.5 |
| PU 0K7-L13 | 0.75 | 9.3 | 4.2 |
| PU 1K5-L13 | 1.5 | 15.7 | 7.5 |
| PU 2K2-L13 | 2.2 | 24 | 10 |
| L33 (4-7.5KW) | PU 004-L33 | 4 | 17 | 16 |
| PU 5K5-L33 | 5.5 | 25 | 20 |
| PU 7K5-L33 | 7.5 | 33 | 30 |
| H33 (0.7-37KW) | PU 0K7-H33 | 0.75 | 3.4 | 2.5 |
| PU 1K5-H33 | 1.5 | 5.0 | 4.2 |
| PU 2K2-H33 | 2.2 | 5.8 | 5.5 |
| PU 004-H33 | 4 | 13.5 | 9.5 |
| PU 5K5-H33 | 5.5 | 19.5 | 14 |
| PU 7K5-H33 | 7.5 | 25 | 18.5 |
| PU 011-H33 | 11 | 32 | 25 |
| PU 015-H33 | 15 | 40 | 32 |
| PU 018-H33 | 18.5 | 47 | 38 |
| PU 022-H33 | 22 | 51 | 45 |
| PU 030-H33 | 30 | 70 | 60 |
| PU 037-H33 | 37 | 80 | 75 |
Service
1, Support imprint your logo on products and let your logo shine anywhere
2, OEM/ODM orders available if quantity appropriate
3, We own the best after-sale service. If any problem happens, our team will do our best to solve it.
4, We can ship products by sea, by air and by Courier
Packaging and Delivery
1, Aluminum box and carton box, careful and tight package, make sure the package is intact during delivery.
2, The package will be shipped by DHL/FedEx/TNT/EMS/UPS/Special line, which can be specified in the order.
3, The shipping time is different, it depends on the distance between us, and the quantity ordered.
